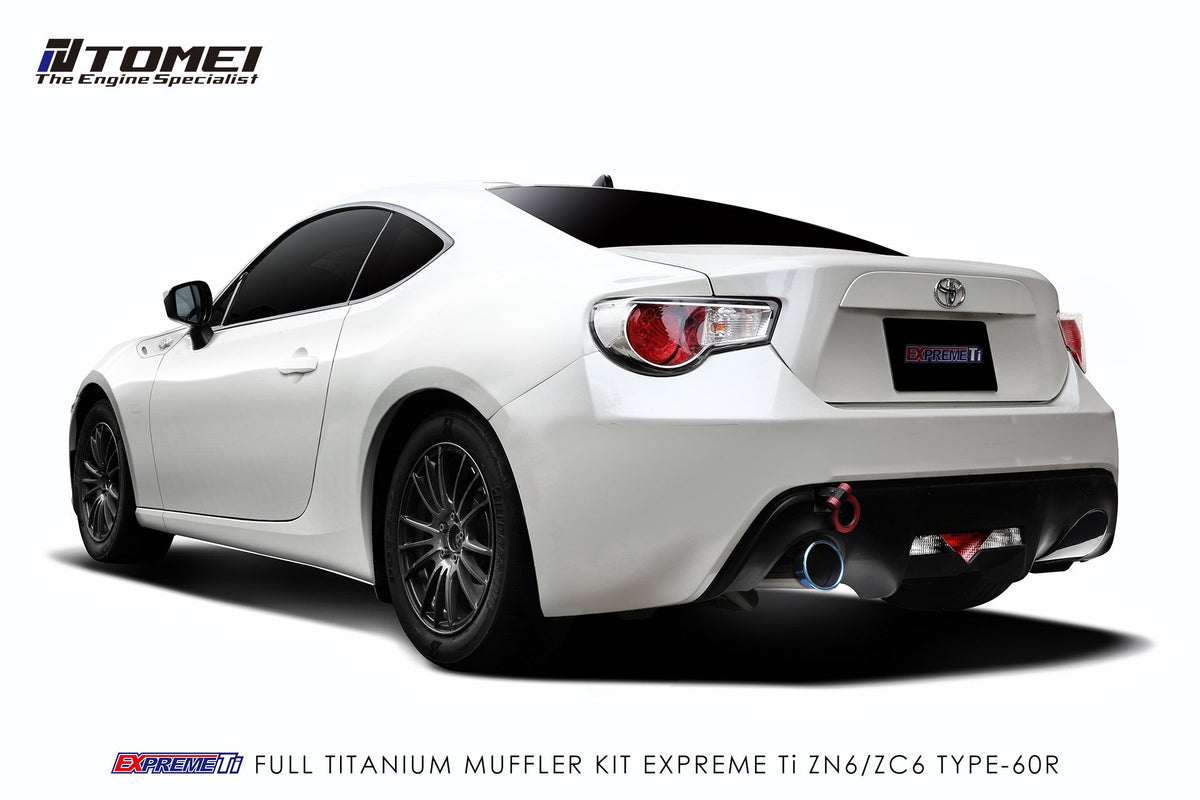

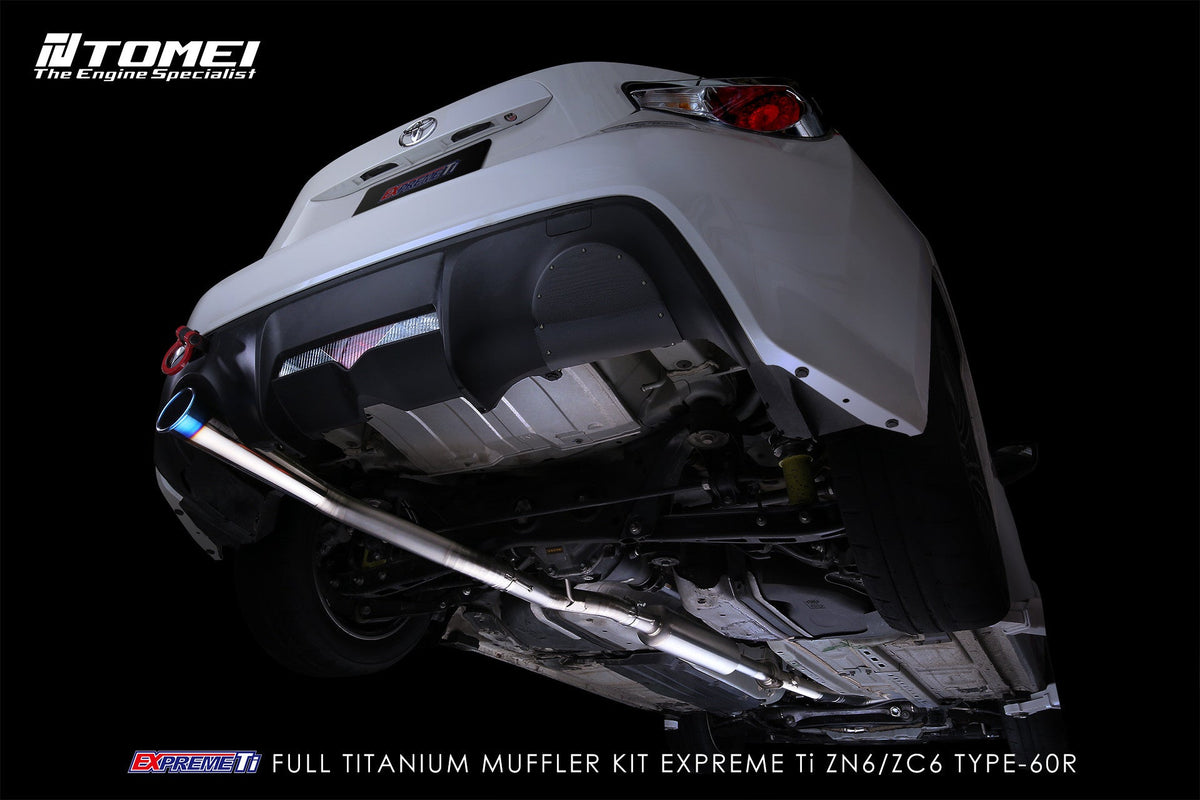

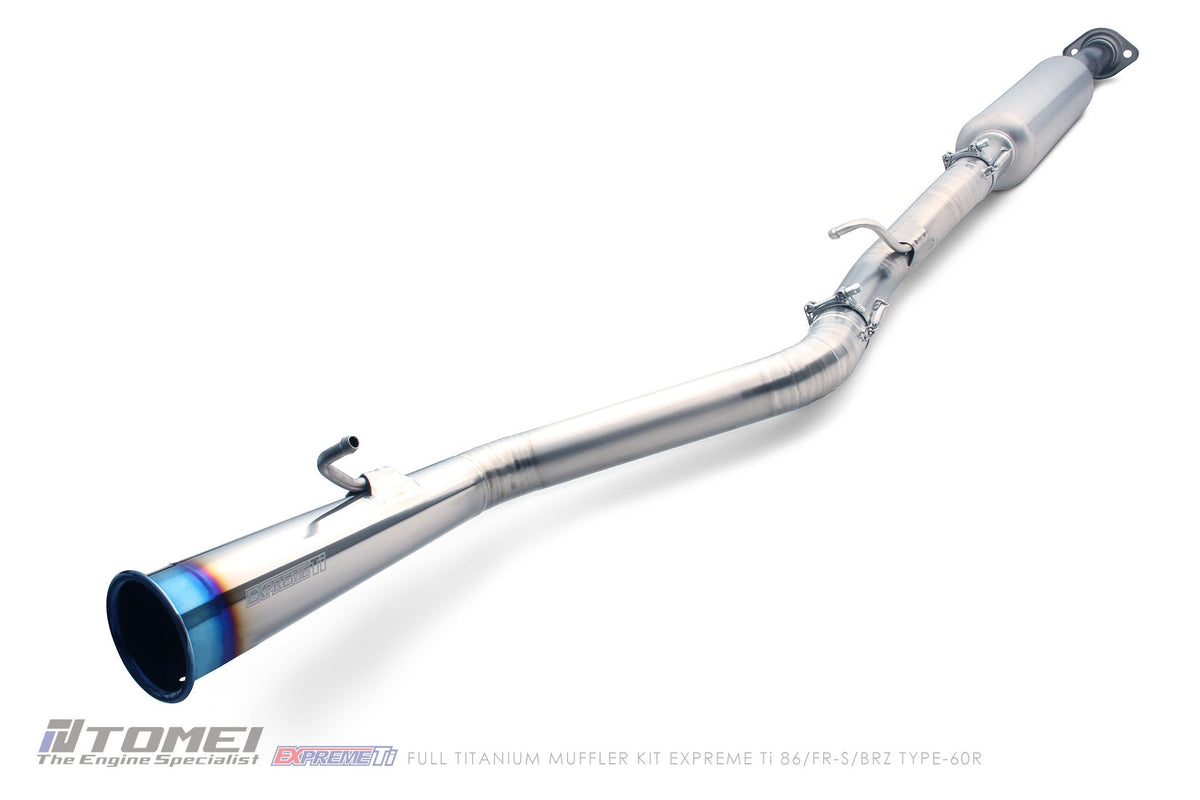

TOMEI FULL TITANIUM MUFFLER EXPREME Ti TOYOTA GR86 2022+/ Toyota 86 2017+/FR-S/BRZ SINGLE TYPE-60R

TOMEI FULL TITANIUM MUFFLER EXPREME Ti TOYOTA GR86 2022+/ Toyota 86 2017+/FR-S/BRZ SINGLE TYPE-60R

SKU: TB6090-SB03B

Out of Stock — Estimated ETA: 1–3 Weeks

$1,290.00

Sold out

This muffler from Tomei Powered reshapes the exhaust note into a deeper, more refined tone while shedding significant weight over the stock unit.

Constructed from titanium, it cuts meaningful weight over the OEM part while standing up to sustained heat and stress.

Fits: Engine: TOYOTA FA20, SUBARU FA20 | Model: SUBARU BRZ, TOYOTA 86, SCION FR-S

Specifications

		86/FR-S [ZN6]	BRZ [ZC6]	86 [ZN8]	BRZ [ZD8]
		FA20	FA24
		2012-2021	2012-2020	2021-
New TYPE-80 ver.2	TB6090-SB05A	✓	✓	✓	✓
New TYPE-D	TB6090-SB05B	✓	✓	✓	✓
TYPE-60S	TB6090-SB03A	✓	✓
TYPE-60R	TB6090-SB03B	✓	✓
TYPE-80	TB6090-SB03C	✓	✓

Specifications

	TOMEI	OEM
	TYPE-80 ver.2	TYPE-D	TYPE-60R	TYPE-60S	TYPE-80	ZN8/ZD8	ZN6/ZC6
PARTNo.	TB6090-SB05A	TB6090-SB05B	TB6090-SB03A	TB6090-SB03B	TB6090-SB03C	-	-
APPLICATION
MATERIAL	TITANIUM	STEEL
MAIN PIPE DIAMETER	3.2inch (80.5mm)	3.2-3.0inch (80.5-76.3mm)	2.4inch (60.5mm)	3.2inch (80.5mm)	2.1-2.2inch (53.5-55.0mm)	2.1inch (54.0mm)
MAIN PIPE THICKNESS	1.0mm	-	-
SILENCER DIAMETER	6.0inch (152.0mm)	6.0inch x2 (152.0mm x2)	-	-	-	10.6 x24.8inch (270x630mm)	-
SILENCER THICKNESS	1.0mm	-	-
SUB SILENCER DIAMETER	4.6inch (118.0mm)	-	-	-	4.6inch (118.0mm)
SUB SILENCER THICKNESS	1.0mm	-	-	-	-	-	-
EXIT DIAMETER	4.5inch (115.0mm)	4.5inch x2 (115.0mm x2)	4.1inch (105.0mm)	4.5inch (115.0mm)	4.3inch (110.0mm x2)	4.3inch x2 (110.0mm x2)
EXIT THICKNESS	1.0mm	-	-
FLANGE THICKNESS	8.0mm	-	-
WEIGHT	18.7lbs (8.5kg)	24.0lbs (10.9kg)	10.1lbs (4.6kg)	14.1lbs (6.4kg)	16.1lbs (7.3kg)	35.2lbs (16.0kg)	38.3lbs (17.4kg)

Specifications

	TYPE-80 Ver.2	TYPE-D	TYPE-60R	TYPE-60S	TYPE-80
	BZR(ZD8)	86/FR-S(ZN6)	BZR(ZD8)	86/FR-S(ZN6)	86/FR-S(ZN6)
with Sound Reducer ver.2	96db	96db	94db	95db	-	-	-
with Sound Reducer	100db	102db	99db	101db	97db	92db	98db
without Sound Reducer	105db	108db	105db	108db	104db	95db	102db

Specifications

CATEGORY	TYPE	PART No.		GR86 (ZN8)	BRZ (ZD8)	86/FR-S (ZN6)	BRZ (ZC6)
FA24	FA20
2021-	2012-2021	2012-2020
JOINT PIPE		TB6060-SB03A Detail→				✓	✓
MUFFLER	NEW TYPE-80 Ver.3	T B6090-SB05C Detail→		✓	✓	✓	✓
TYPE-80 Ver.2	TB6090-SB05A Detail→		✓	✓	✓	✓
TYPE-D	TB6090-SB05B Detail→		✓	✓	✓	✓
TYPE-60S	TB6090-SB03A Detail→				✓	✓
TYPE-60R	TB6090-SB03B Detail→				✓	✓
TYPE-80	TB6090-SB03C Detail→				✓	✓
