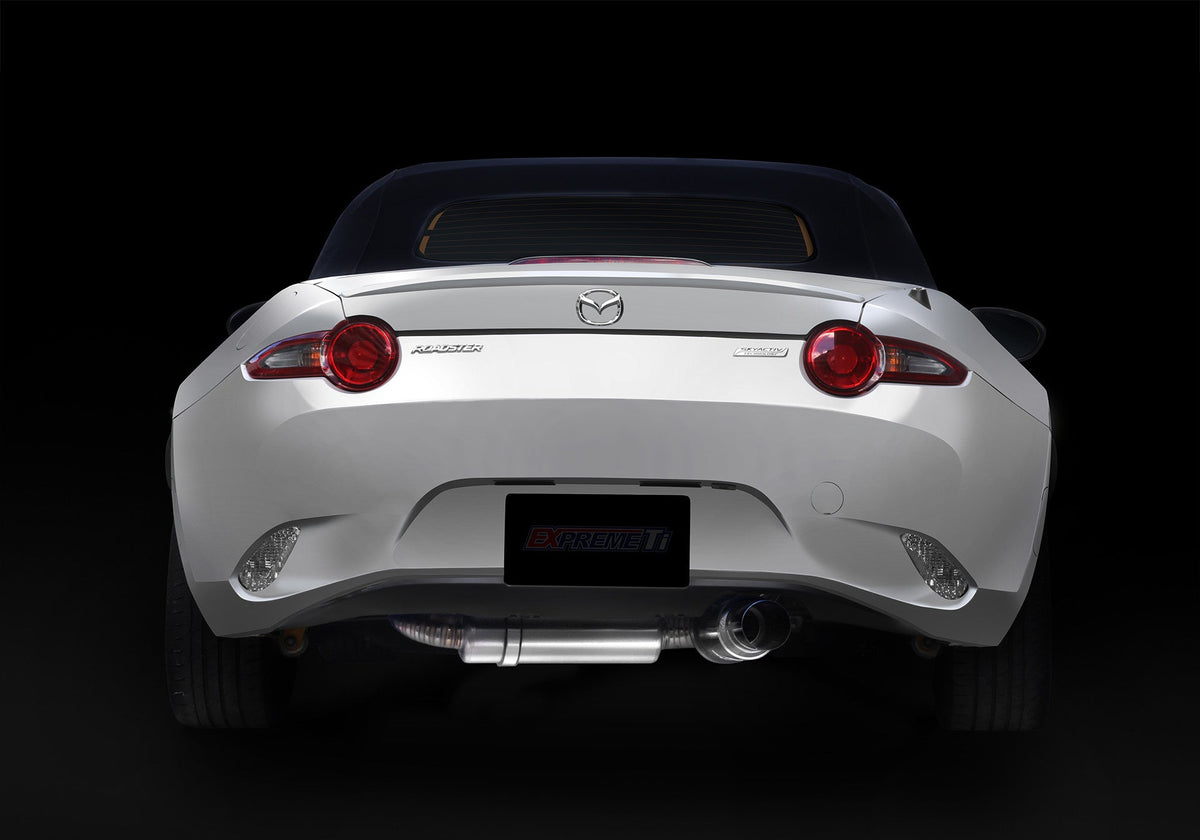

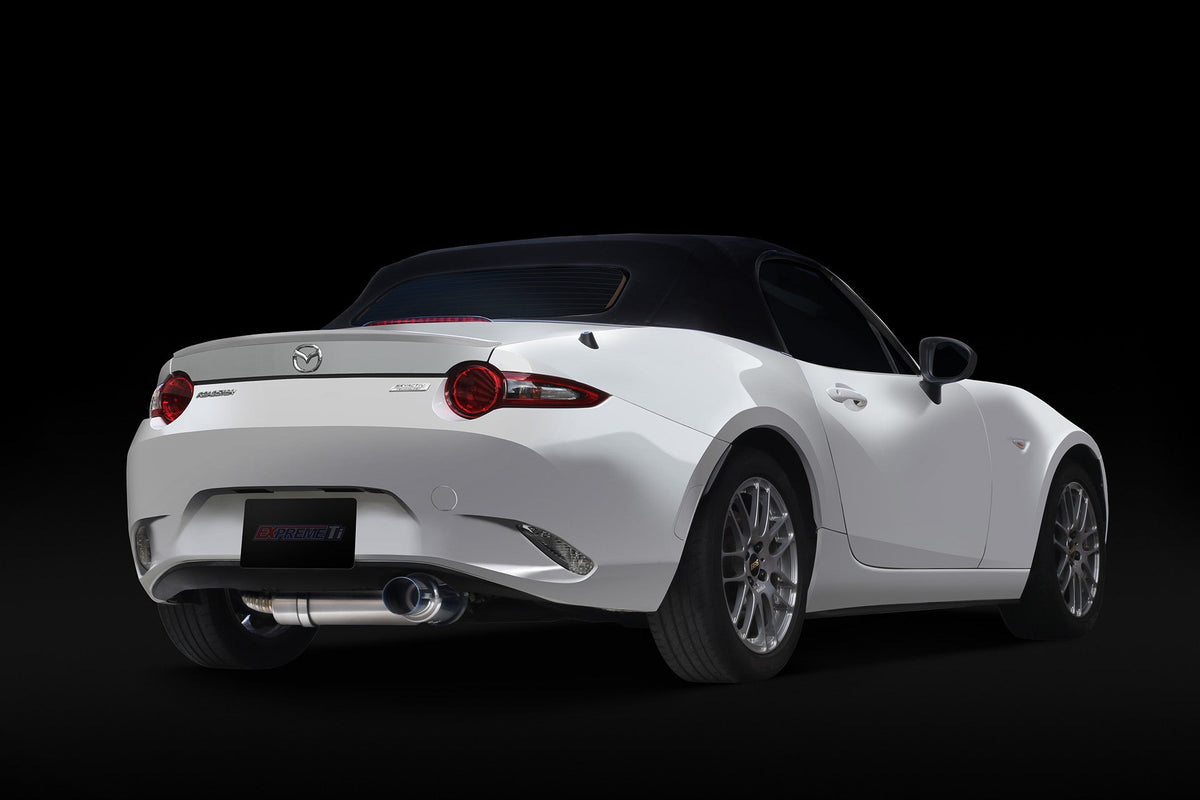

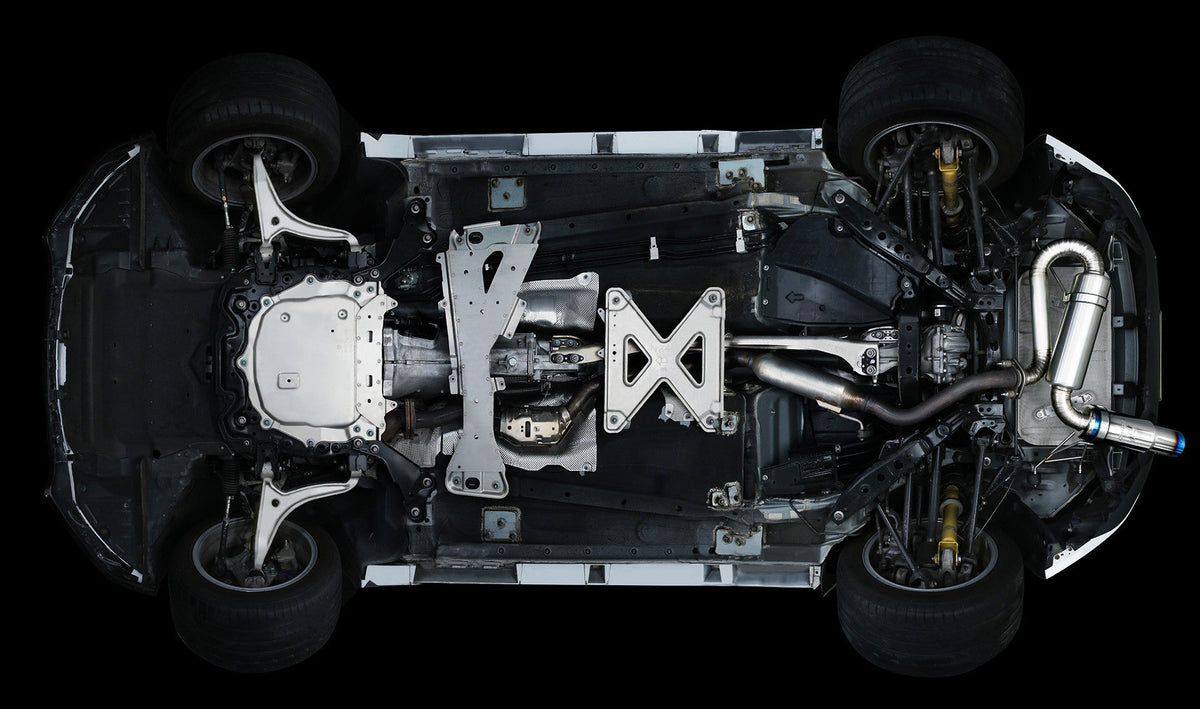

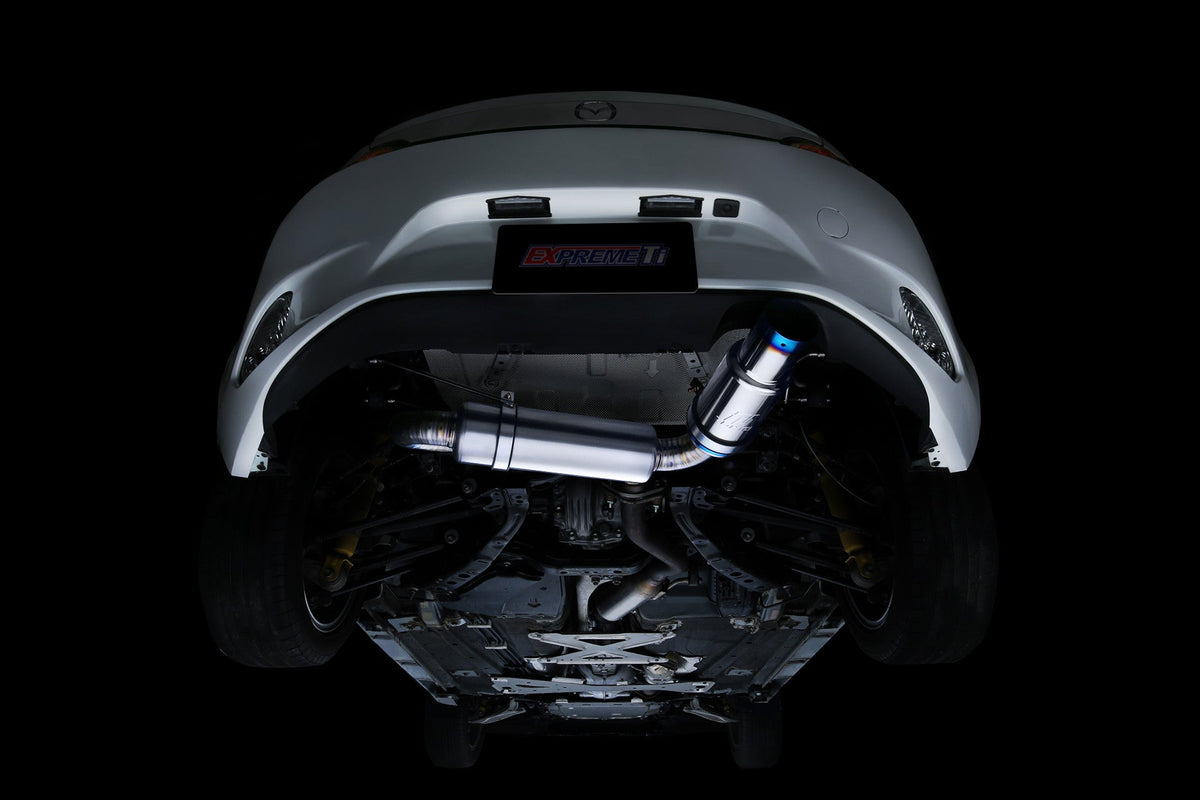

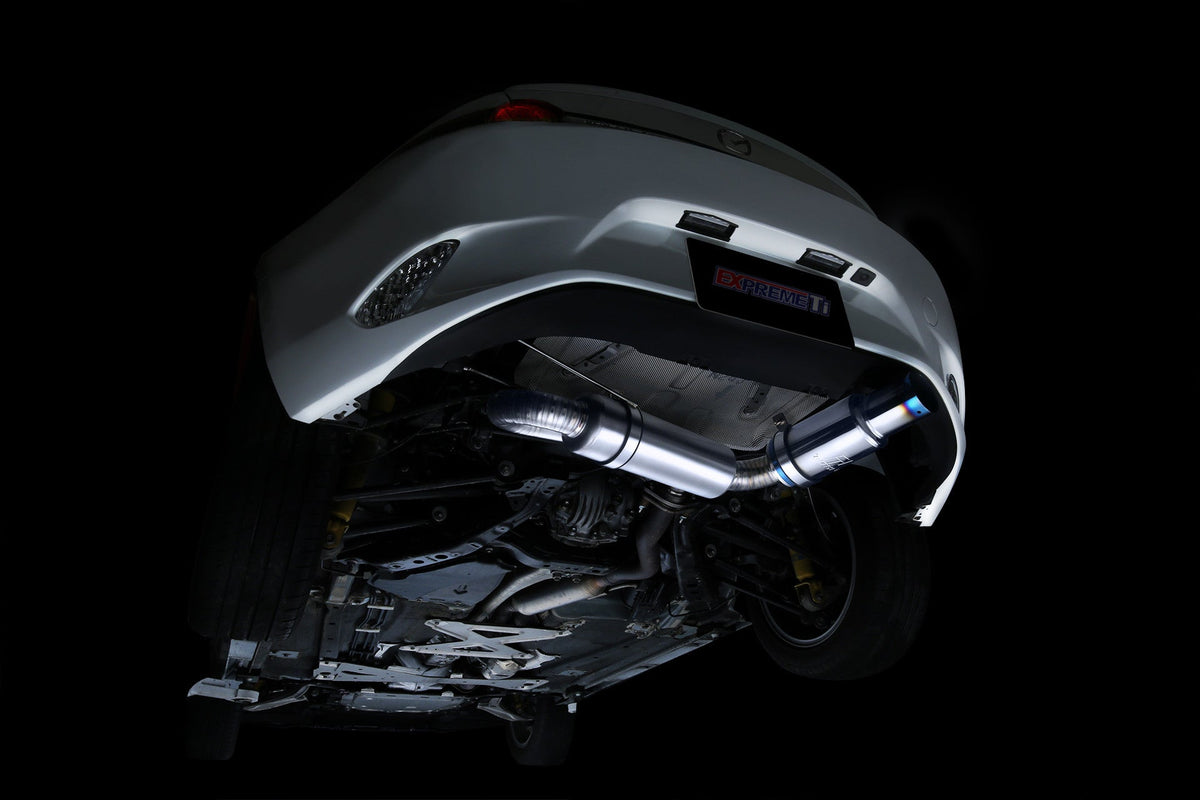

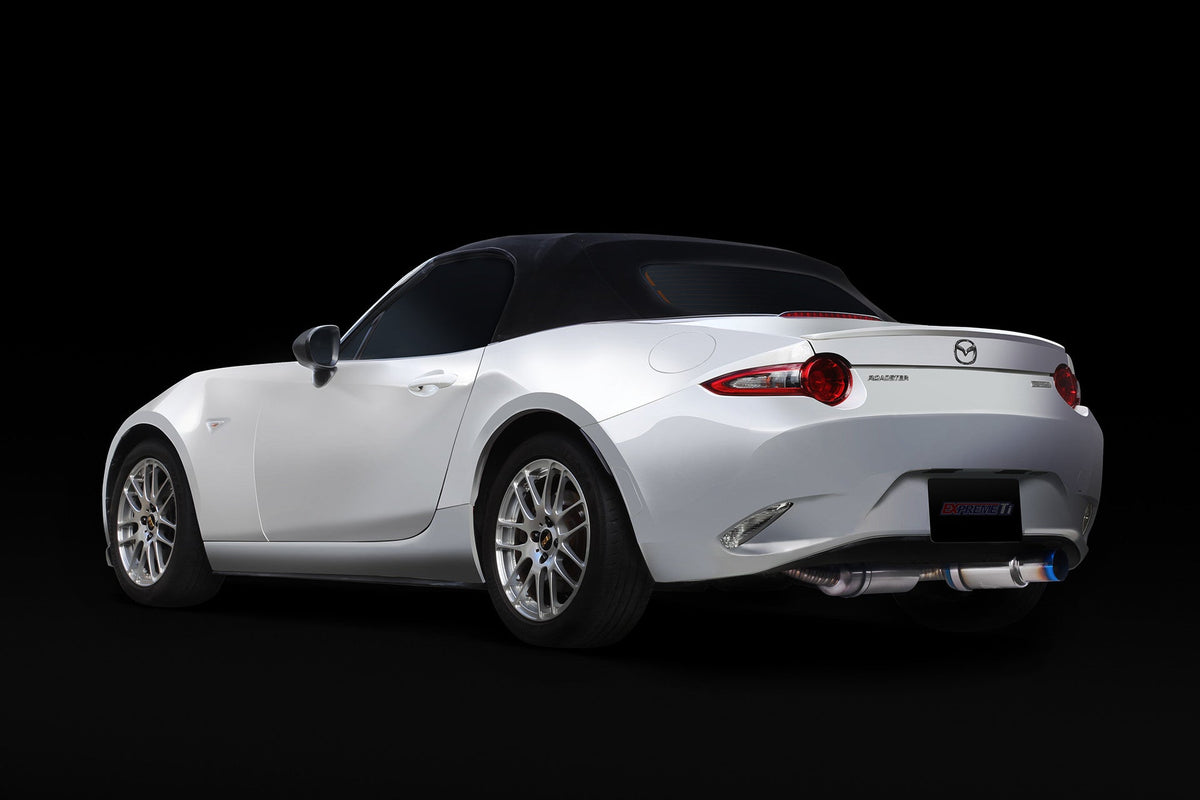

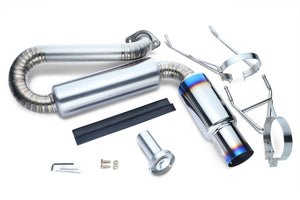

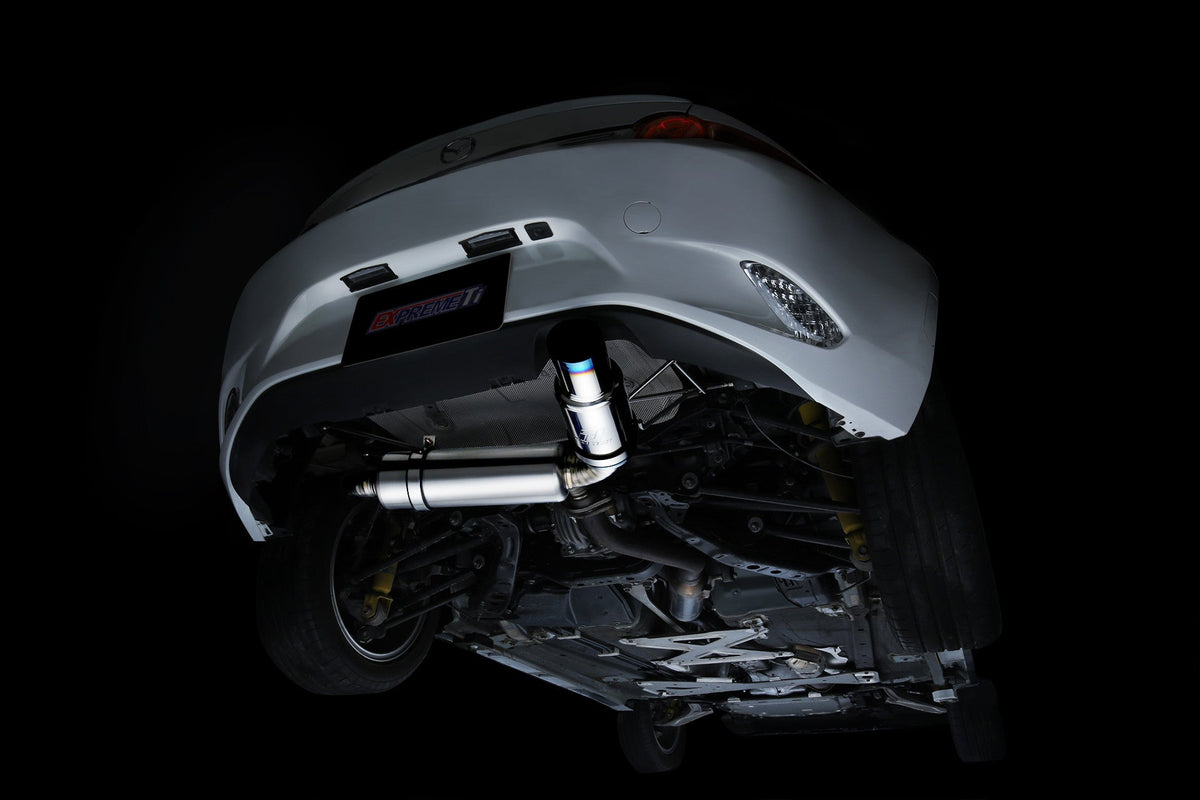

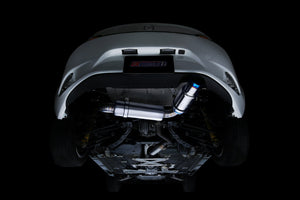

TOMEI FULL TITANIUM MUFFLER EXPREME Ti ND MX-5 MIATA
This muffler from Tomei Powered reshapes the exhaust note into a deeper, more refined tone while shedding significant weight over the stock unit.
Constructed from titanium, it cuts meaningful weight over the OEM part while standing up to sustained heat and stress.
Fits: Engine: MAZDA PE-VPR, MAZDA P5-VP | Model: MAZDA ND MX-5 MIATA
Specifications
| TOMEI | OEM | |
|---|---|---|
| PARTNo. | TB6090-MZ06A | - |
| MATERIAL | TITANIUM | - |
| MAIN PIPE DIAMETER | 2.5inch (63.5mm ) | 2.1inch (54.0mm) |
| MAIN PIPE THICKNESS | 1.0mm | - |
| SUB SILENCER DIAMETER | 4.6inch (118.0mm) | - |
| SUB SILENCER THICKNESS | 1.0mm | - |
| SILENCER DIAMETER | 4.6inch (118.0mm) | 31.8x12.2inch (810x310mm) |
| SILENCER THICKNESS | 1.0mm | - |
| EXIT DIAMETER | 3.5inch (89.1mm) | 2.4inch (61.0mm) x2 |
| EXIT THICKNESS | 1.0mm | 1.2mm |
| FLANGE THICKNESS | 2.0mm | 3.0mm |
| WEIGHT | 12.8lbs (5.8kg) | 20.5lbs (9.3kg) |
