ICO Upper Control Arms
$10,132.27
Title
ICO Upper Control Arms
Categories :
Control Arms

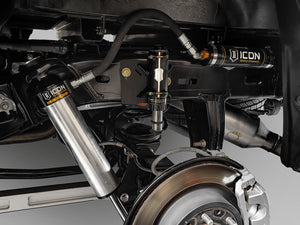

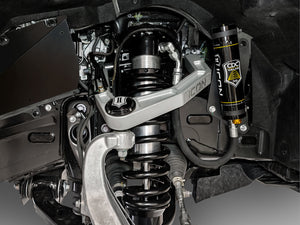

This Stage 3 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2025 | Toyota | Tundra | 1794 Edition |
| 2022-2025 | Toyota | Tundra | Limited |
| 2022-2025 | Toyota | Tundra | Platinum |
| 2022-2025 | Toyota | Tundra | SR |
| 2022-2025 | Toyota | Tundra | SR5 |
| 2022-2025 | Toyota | Tundra | TRD Pro |
Quantity
Price Match Guarantee
Free Shipping! On orders over $199+
15 Day Hassle-Free Returns
In-House Experts!
Payment Options
This Stage 3 system features the 2022-2025 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2025 | Toyota | Tundra | 1794 Edition |
| 2022-2025 | Toyota | Tundra | Limited |
| 2022-2025 | Toyota | Tundra | Platinum |
| 2022-2025 | Toyota | Tundra | SR |
| 2022-2025 | Toyota | Tundra | SR5 |
| 2022-2025 | Toyota | Tundra | TRD Pro |
