Title

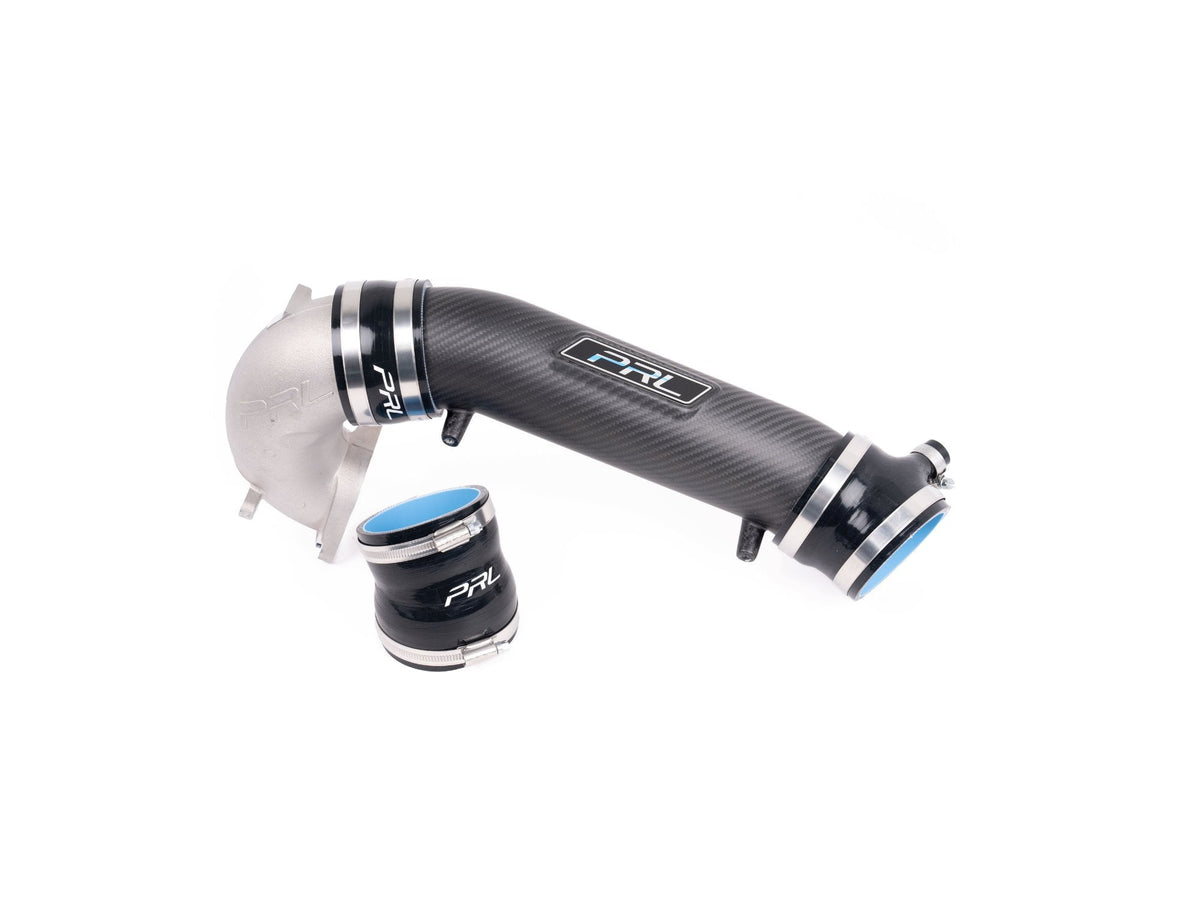

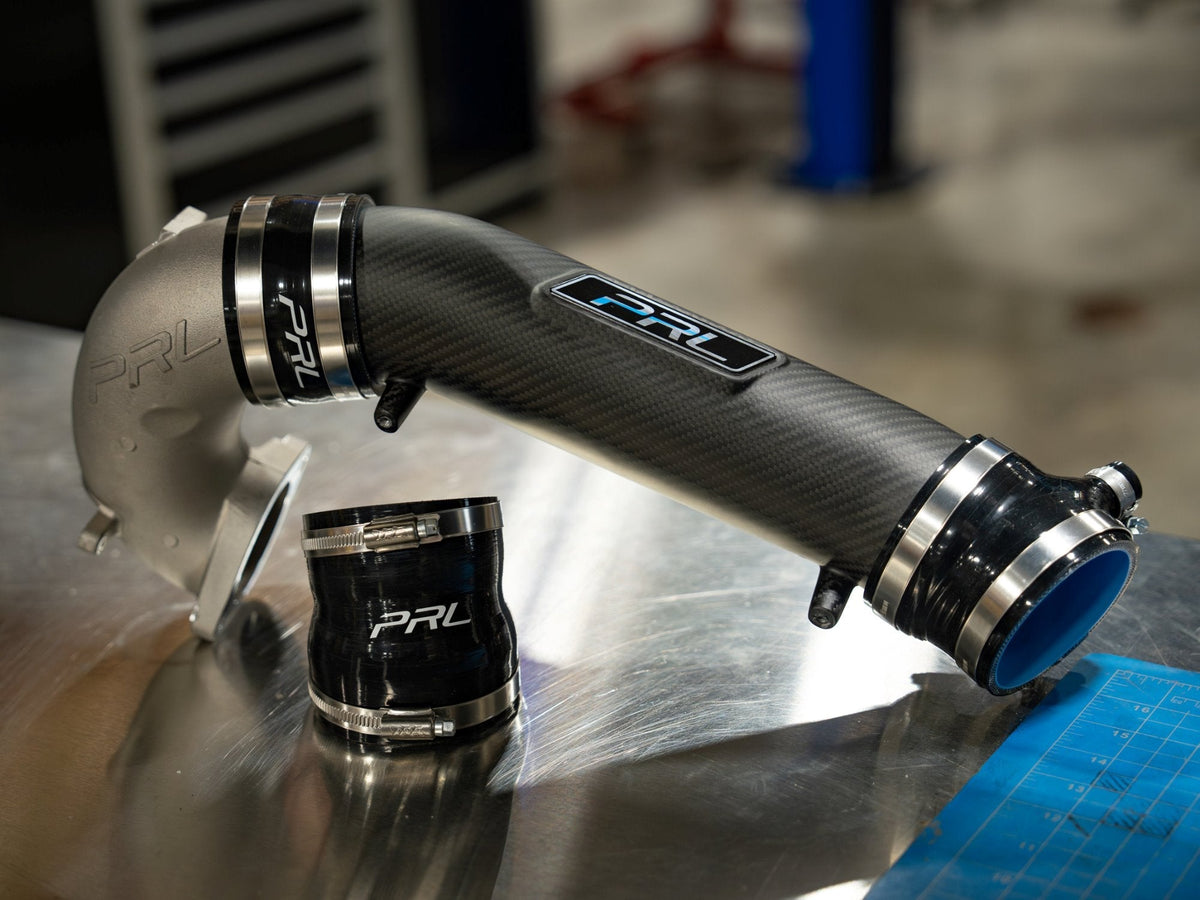

PRL Motorsports 2023+ Honda Civic Type-R FL5 Matte Carbon Fiber Turbocharger Inlet Pipe Kit
Patent Pending
Fits all 2023+ Honda Civic FL5 Type-R
Fits all variant models including RHD, International Models, Etc.
Fits all Factory Fitment Turbochargers
Only compatible with PRL High Volume Intake
Overview
INSTALLATION:
PDF - 2023+ Honda Civic Type-R FL5 Titanium Turbocharger Inlet Pipe Kit Install Instructions
Important Notes:
- NO ECU CALIBRATION REQUIRED
- ONLY COMPATIBLE WITH PRL HIGH VOLUME INTAKE
Technical Notes:
Maximize your FL5's engine intake system and turbocharger potential with the PRL Motorsports Matte Carbon Fiber Turbocharger Inlet Pipe Kit. This kit is a direct bolt-on upgrade that eliminates intake airflow restriction before the turbocharger, allowing the turbocharger to operate more efficiently. Our design utilizes a cast aluminum inlet piece to allow smooth a transition from the gasket-matched 64mm ID compressor inlet to an 80mm OD / 78mm ID outlet throughout the Carbon Fiber crossover pipe. This kit is the largest inlet pipe available and offers over a 50% increase in airflow volume in comparison to the factory inlet pipe, giving you Increased bottom-end power and spool. Our new matte carbon fiber design will not only match the rest of your engine bay but enhance its aesthetics and give you a race-inspired look.

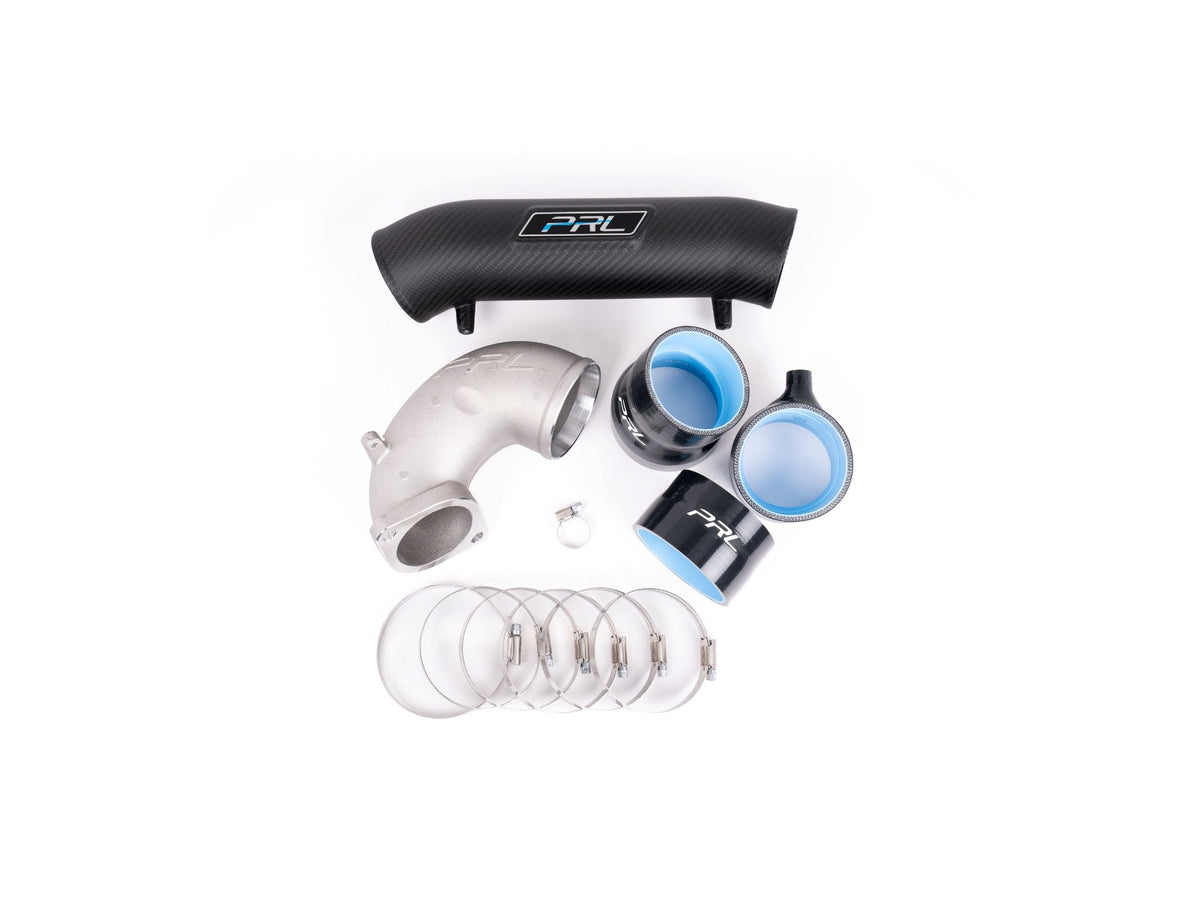

Kit Includes:
- (1) Cast Aluminum Inlet Piece
- (1) 80mm OD Matte Carbon Fiber Inlet Pipe
- (3) High-Temp 4-Ply Silicone Coupler(s)
- (7) 304 Stainless Steel Interlocking Worm Clamps
Patent Pending
Fits all 2023+ Honda Civic FL5 Type-R
Fits all variant models including RHD, International Models, Etc.
Fits all Factory Fitment Turbochargers
Only compatible with PRL High Volume Intake
Overview
INSTALLATION:
PDF - 2023+ Honda Civic Type-R FL5 Titanium Turbocharger Inlet Pipe Kit Install Instructions
Important Notes:
- NO ECU CALIBRATION REQUIRED
- ONLY COMPATIBLE WITH PRL HIGH VOLUME INTAKE
Technical Notes:
Maximize your FL5's engine intake system and turbocharger potential with the PRL Motorsports Matte Carbon Fiber Turbocharger Inlet Pipe Kit. This kit is a direct bolt-on upgrade that eliminates intake airflow restriction before the turbocharger, allowing the turbocharger to operate more efficiently. Our design utilizes a cast aluminum inlet piece to allow smooth a transition from the gasket-matched 64mm ID compressor inlet to an 80mm OD / 78mm ID outlet throughout the Carbon Fiber crossover pipe. This kit is the largest inlet pipe available and offers over a 50% increase in airflow volume in comparison to the factory inlet pipe, giving you Increased bottom-end power and spool. Our new matte carbon fiber design will not only match the rest of your engine bay but enhance its aesthetics and give you a race-inspired look.
Kit Includes:
- (1) Cast Aluminum Inlet Piece
- (1) 80mm OD Matte Carbon Fiber Inlet Pipe
- (3) High-Temp 4-Ply Silicone Coupler(s)
- (7) 304 Stainless Steel Interlocking Worm Clamps
